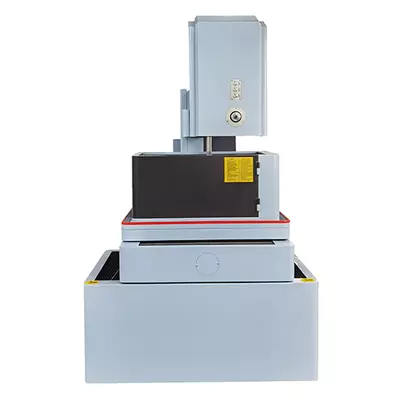

Multi-cut EDM Wire Cutting Machine (T series)
Robust frame with “T” shape structure.
Long travel rail installed in the bottom, which imporve the stability for heavy product.
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in +/-0.006mm, Roughness Ra 0.8.
Full enclosed cover, Similar to European machine.
New Genration control cabinet, High efficient. ( max. cutting speed ≥ 180mm2/min)
Technical Parameters:
| Model | FZT-320(350) | FZT-400(450) | FZT-500 | FZT-630 |
| Table size (mm) | 700*500 | 820*600 | 1000*700 | 1200*800 |
| Table travel(X/Y) (mm) | 400*320/450*350 | 500*400/550*450 | 630*500 | 800*630 |
| Max.cut thickness (mm) | 300 | 300 | 400 | 400 |
| Travel size (U/V) (mm) | (Normal):24×24 (Large taper):D-60×60 E-130×130 T-240×240 | |||
| Molybdenum wire Dia. (mm) | (Molydbenum wire) φ0.10～0.22 | |||
| Wire speed (m/sec) | 12,9,7,5,2 | |||
| Max.cutting angle | ±3°/80mm | |||
| Process accuracy (mm) | (Multi-cut): 10×10×30(Square)≤0.006; (One time-cut)≤0.012;
(Multi-cut)(Octagon)≤0.009; (Straightness)≤0.006/50mm; |
|||
| Process roughness (Ra.um) | (Multi-cut): Ra≤1.0) (single cut): Ra≤2.0 | |||
| Driving motor | Step motor / AC servo motor * (Optional) | |||
| Guide screw and track | Precision ball screw/Linear guide way | |||
| Tension system | three stage (0/1/2) tension adjustable | |||
| Power supply | 380V/50Hz, 2.5kw | |||
| Max.workpiece weight (kg) | 450 | 600 | 1000 | 1200 |
| Weight (kg) | 1800 | 2100 | 2900 | 3300 |
| Dimension (mm) | 1750×1300×2000 | 1900×1450×2000 | 2050×1850×2100 | 2250×2050×2100 |
